Line for Buildings
High-performance practical profile system.

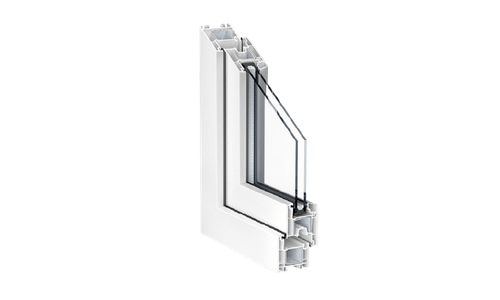

A 58 mm profile system developed to the highest European quality standards. Designed to meet the current demands of the construction sector, it combines energy efficiency, sound insulation, durability, and modern design.
Ideal for operable windows and doors, this system offers a reliable, durable and sustainable solution for residential and commercial projects.
Standard hardware channel with increased thickness in screw-in areas
Fastening over reinforcement for greater stability and durability
Weldable brackets that increase mechanical stability
Glazing thickness allowed: from 4 mm to 34 mm
Door threshold for inward and outward openings

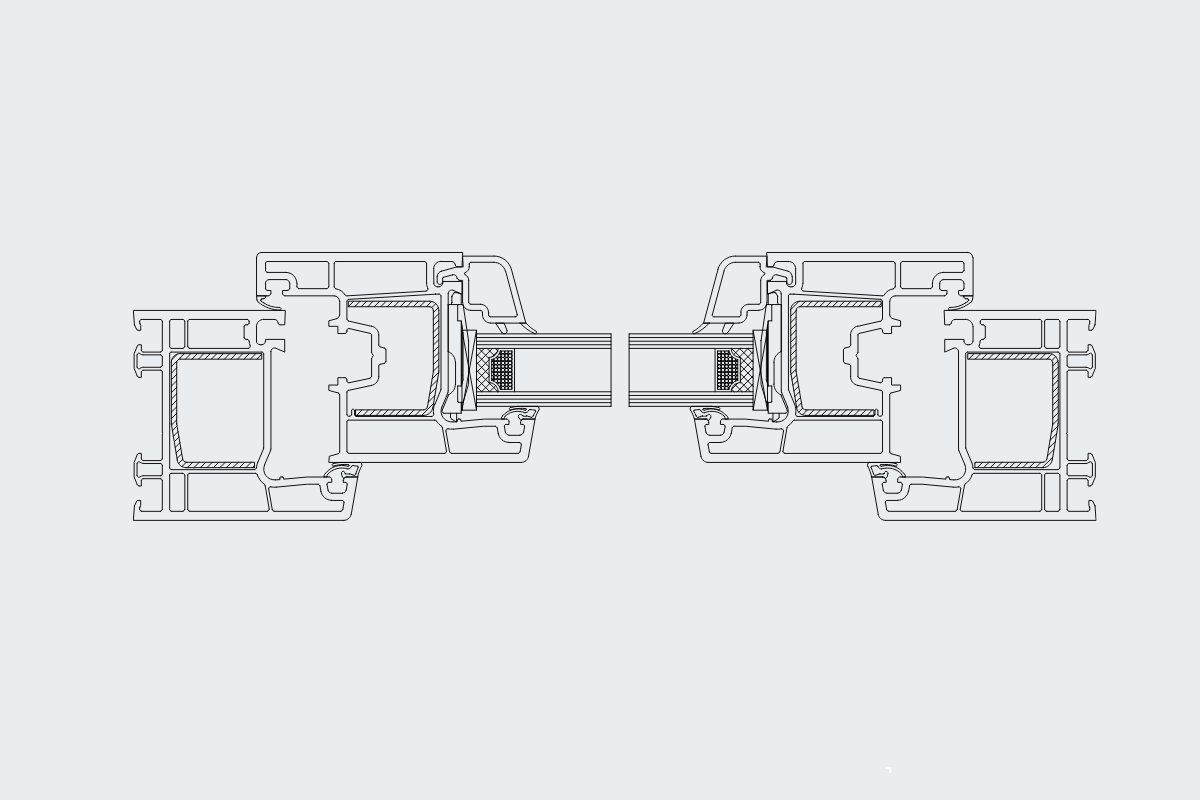

The semi-inclined rebate and the internal arrangement of chambers improve water drainage and watertightness.
The profiles are manufactured with Kömalit Z, a proprietary formulation obtained through extrusion with permanent quality control.
100% recyclable (greenline® profile)
lead free
Hardly flammable and self-extinguishing
Impact resistant down to -40°C
High dimensional stability under heat
Inert and neutral (safe for health and the environment)
Los perfiles cuentan con 10 años de garantía en:
Impact resistance
Dimensions within permissible tolerances
Color stability (depending on finish)
Manufactured following strict quality guidelines certified under European regulations.
Exterior opening
Special openings
Adaptable to different architectural designs and functional needs.
Uw from 1,32 W/m2K
Uf from
1.80 W/m2K
Up to 35 dB
Class 4
Up to 1800
Up to C5
Uw from 1,32 W/m2K
Uf from
1.80 W/m2K
Up to 35 dB
Class 4
Up to E1800
Up to C5
Uw desde 1.25 W/m2K
Uf desde 1.80 W/m2K
Hasta 35dB
Class 3
Up to E750
Up to C5
Neher Transpatec
Mosquito Net Transpatec fabric and its innovative, patented technology offer decisive advantages over conventional insect-proof fabrics. In addition to increased light transmission, Transpatec is particularly compelling due to its exceptional transparency, making it virtually invisible from both inside and out.
RolaPlus
Without a doubt, the KÖMMERLING RolaPlus shutter system acts as a protective measure, reinforcing the window's insulation, strength, and weatherproofing. This sets it apart from conventional shutter boxes, which are often the window's weakest point, allowing noise, humidity, drafts, and cold air to enter.
